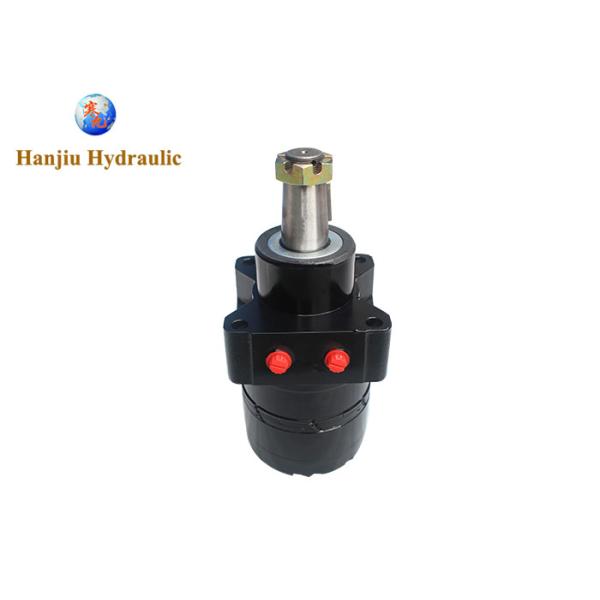

Parker Hydraulic Wheel Motor TG0280LS080AAFW TG Series LSHT Replacement

Name: Parker Hydraulic Wheel Motor TG0280LS080AAFW TG Series LSHT Replacement
Brand: HANJIU
Price: 150 USD

Quality Parker Hydraulic Wheel Motor TG0280LS080AAFW TG Series LSHT Replacement for sale

Brand Name : HANJIU

Model Number : TG0280LS080AAFW

Certification : CE

Place of Origin : China

MOQ : 100 Pieces

Price : 150 - 170 us dollar

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000 pieces per year

Delivery Time : 55 work days

Packaging Details : Box, Pallet

Item : Low Speed High Torque Motor

OEM # : TG0280LS080AAFW

Manufacturer : Hanjiu

Displacement : 280cc

Features : Parker alternative

Shaft : Taper

Contact Now

Parker TG0280LS080AAFW TG Series LSHT Hydraulic Wheel Motor replacement

This is a Parker TG0280LS080AAFW replacement motor.

Specifications

Series: TG

Shaft: 1 1/4" Tapered

Rotation: Standard

Displacement (cm3/rev): 0280

Mounting: Wheel, Front Brake

Geometric Displacement: 280 cm3/rev (17.1 in3/rev)

Maximum Speed: 334 rev/min

Maximum Oil Flow (continuous / intermittent): 76 lpm (20 gpm) / 95 lpm (25 gpm)

Max. Differential Pressure (continuous / intermittent): 207 bar (3000 PSID) / 276 bar (4000 PSID)

Maximum Supply Pressure: 300 bar (4350 PSIG)

Maximum Torque - Continuous / Intermittent: 796 Nm (7044 lb-in) / 1073 Nm (9499 lb-in)

Maximum Performance: 31 KW (42 HP)

Minimum Starting Torque - Continuous / Intermittent: 675 Nm (5972 lb-in) / 870 Nm (7699 lb-in)

Maximum Side Load at Key: 16000 N (3597 lb)

Porting Code: S

Porting: 7/8-14 SAE

Shaft Code: 08

Rotation Code: 0

Apply to: Hustler 604467

Options code: AAFW

Option: Fluorocarbon (Viton) Seals, High Temperature Commutator Seal, Black Paint

Mounting code: L

Parker Hydraulic Wheel Motor TG0280LS080AAFW TG Series LSHT Replacement

We have a full range of Parker high-end replacement Motors.

We are able to provide you TE, TF, TG, TB, TC, TJ series to cover all your local request with more reasonable cost and stable lead time .

Below are some examples.

If you are looking for high-end Parker replacement motors, contact us.
